PURPOSE
These heat-shrinkable cable joints are designed for connecting low insulating conductors (LIC) whose conductors are made of Al-steel ropes for voltages 10,20 and 35kV.

CONSTRUCTION

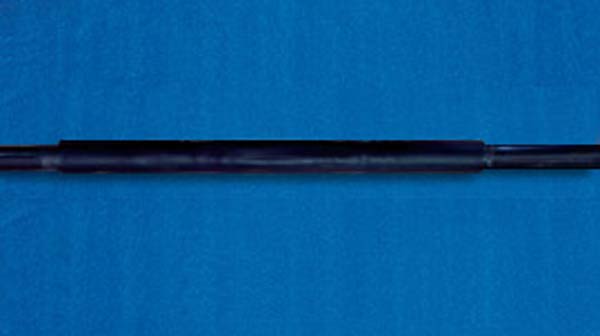

Set includes two compression connectors, one connector for carrying part of rope is made of steel and the other connector is made of aluminium, which is placed over the rope. Water resistance is realized by heat-shrinkable tubes with hot melting adhesive.
Code No Product Type Voltage level (kV) Conductor
cross-section

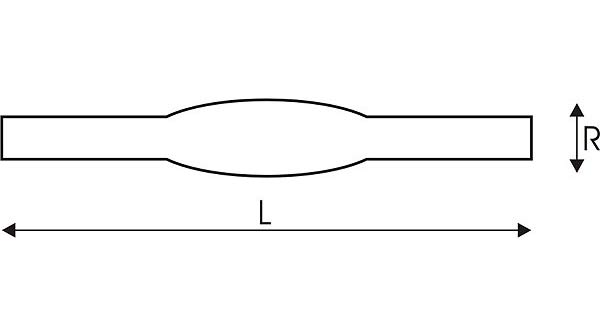

(mm2)		 Lenght of joint L
(mm)		 Max diameter R
(mm)
14051 TSKS sip
50/8		 10/20/35 50 600 21
14052 TSKS sip
70/12		 10/20/35 70 600 25
14053 TSKS sip
95/15		 10/20/35 95 650 28
