PURPOSE
These heat-shrinkable joints are designed to be applied to three-core screened plastic cables 10 and 20 kV, types XHP, XHE and cables of similar construction.

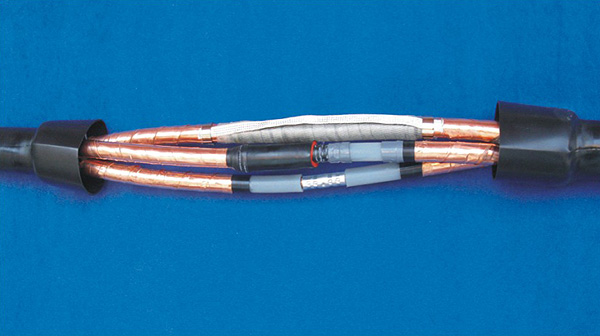

CONSTRUCTION
Wire connection is made by connectors or by screws, electrical field regulation is realized by stress control elements,
joint insulation and screen joining are made by using are two-layer insulating tube. Earth wire joint is made by using connectors and copper wire mesh, while water resistance and mechanical protection
are realized by heat-shrinkable tubes with hot melting adhesive. Constant force roll springs are delivered with joints assembly.
Code No Product type Voltage level (kV) Conductor
cross-section

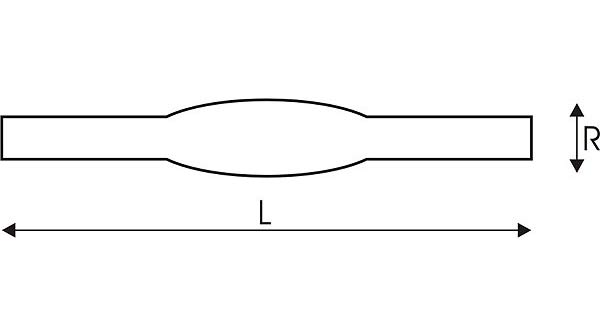

(mm2)		 Lenght of joint L
(mm)		 Max diameter R
(mm)
14010 TSKS 10/3-70 10 25 - 70 1200 90
14011 TSKS 10/3-150 10 70 - 150 1200 110
14012 TSKS 10/3-240 10 95 - 240 1200 130
14013 TSKS 20/3-70 20 25 - 70 1200 100
14014 TSKS 20/3-150 20 70 - 150 1500 120
14015 TSKS 20/3-240 20 95 - 240 1500 130

* If connectors with joint kit are required, it is necessary to mention in the request
